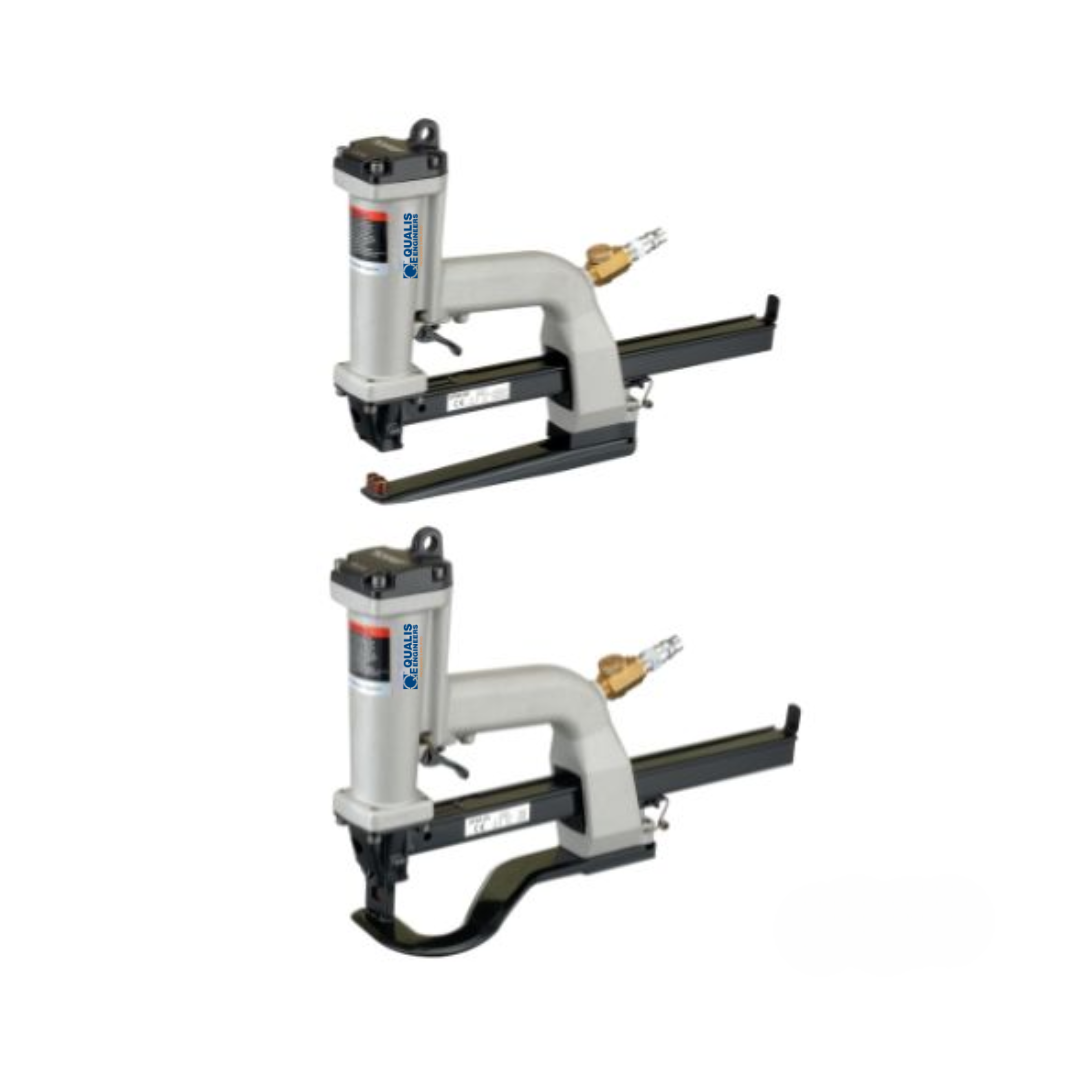

CARTON CORNER STAPLER WITH STAPLE PIN BENDING
FEATURES:
1. Powerful Shuttle Blade Provides Pre-Compression Prior to and During
the Stapling Operating – Giving A Strong, Tight Closure Without Breaking the
Corrugated Surface.
2. 6” x 1” High Throat Allows Flexibility of Staple Placement and Limits Interference
from Obstacles Such as Box Flanges.
3. C Anvils (CL or CR Available for Sealing Partial Overlap Cartons.
Description
FASTENERS
| Tools Staple | Type | Crown | Shank Diameter | Leg Length | Load Capacity |
|---|---|---|---|---|---|
| SP50-10B-A | SB 1030 Bostitch SB 103020 | 12.95 mm / 1/2″ | 0.50 x 2.60 mm / .020 x .103″ | 10, 12, 15 mm / 3/8″, 1/2″, 5/8″ | 102 |
APPLICATION:
1) Corrugated Containers -Trays & Lids
2) End Caps – Headers & Bags
3) Container Inserts – Bedding
| Weight | Dimensions (L × W × H) | Operated Pressure |
|---|---|---|
| 2.2 kg | 370 × 55 × 240 mm | 2.5 – 3.9 kg/cm² |
