Specification
| Sr No | Specification | Details |
|---|---|---|

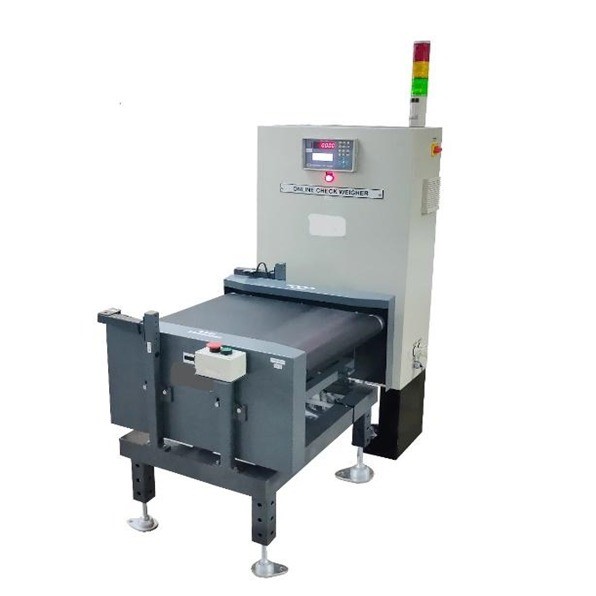

| 01 | Model | QECWS-CS-CW |
| 02 | System | QEOW-MS – Online Checkweigher |
| 03 | Weight Capacity | Up to 50 Kg |
| 04 | Speed | 40 PPM |
| 05 | Accuracy | ± 20 gm |
| 06 | Conveyor Size | L 600 mm × W 500 mm |
| 07 | Height | 700 mm ± 100 mm |
| 08 | Material of Construction (MOC) | MS, Powder Coated Finish |
Software
QUALIS SOFTWARE FOR CHECKWEIGHING
Data acquisition PC software (License-based), 3 Systems can be connected, Reports can be connected & viewed on a Single licensed software.
Software will provide the report as SHIFTWISE, DATEWISE, and MONTHWISE in PDF & Excel format.
Software will provide the report as SHIFTWISE, DATEWISE, and MONTHWISE in PDF & Excel format.
Note: Standalone Computer, Ethernet Cable, Ethernet Switches & Site Cable Routing are in the customer’s scope
Product Description / Specification
| Sr No | Specification | Details |
|---|---|---|
| 01 | MOC | SS / MS |
| 02 | Weighing Range | 300 gm to 30 kg |
| 03 | Weigh Belt Size | L: 600mm × W: 500mm |
| 04 | Best Accuracy | ± 20 gm |
| 05 | Measuring Product Size | Min: L 200mm × W 200mm Max: L 400mm × W 500mm |
| 06 | Max Throughput (Speed) | Up to 80 PPM |
| 07 | Conveyor Height | 750mm ± 50mm |
| 08 | Alarm Type | Visual and Audible Alarm |
| 09 | Rejection Type | Pusher, Divertor |
| 10 | Optional Add-ons | Infeed Conveyor, Outfeed Conveyor, Rejection Collection, Touch Screen Interface |
Benefits:
- Fast and accurate machine
- Counting and input computer panel
- Connect
Application:
| Online weighing boxes and products |
