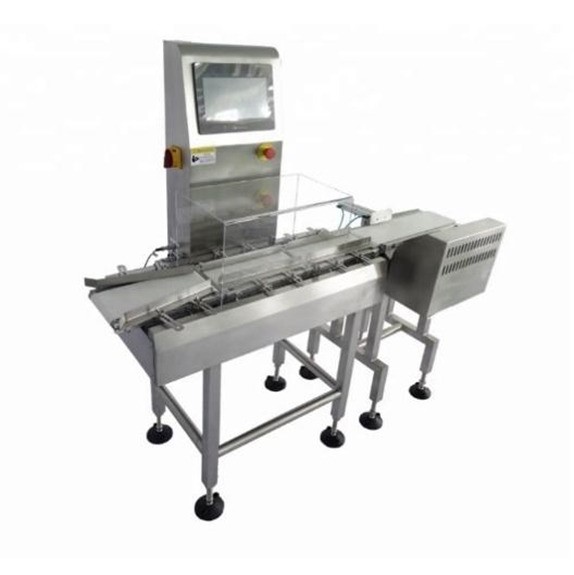

This uses the latest state of art technology to get greater accuracy in dynamic weighing. The system provides 100% ONLINE weighing ensuring compliance with standards and improve production line profitability through the significant reduction in product give away. The entire construction is made from SS and designed for easy removal for cleaning purposes and finds use in the Pharmaceutical, Food and Cosmetic industries.
Specification
| Sr No | Parameter | Details |
|---|---|---|
| 01 | Rated Load | 0.05 – 50 kg |
| 02 | Product Size | L: 800mm, W: 550mm, H: 3-400mm |
| 03 | Weighing Accuracy | ± 20g (vision product) |
| 04 | Belt Speed | 0 – 40 m/min |
| 05 | Highest Speed | 30 pcs/min |
| 06 | Belt Width | 550 mm |
| 07 | Gross Weight | 100 kg |
| 08 | Power | 100 W |
| 09 | Power Supply | AC 110/220 V ±10%, 50 Hz |
| 10 | Main Material | SUS 304 Stainless Steel |
| 11 | Rejection Type | Push |
Standard Features
- Full SS Construction
- Height Adjustment for Ease of Integration with Exiting Line.
- No Zero Drift
- Variable Conveyor Speed Control to Match The Inlet Speed
- Thin Membrane Key Pad and LCD for Easy Setup
- 100 Products Memory
- Feed Back System for Corrective Action
- Real Time Data Logging
- Facility for Dynamic Weight Compensation
- Online Printing
- Computer Connectivity
- Display of Net / Gross Weight
- Statistical Data of Total Accept, Total Reject (Over Weight and Under Weight)
- Various Modes of Rejection Possible
Benefits:
- Fast and accurate machine
- Auto-rejection facility
- Counting and input computer panel
- Connect
Application:
Online weighing boxes and products
